Ground-level access
Vehicles cross the weighing deck without climbing approach ramps.
DIVYA SCALE / SYSTEM ENGINEERING
Pit Type Weighbridge

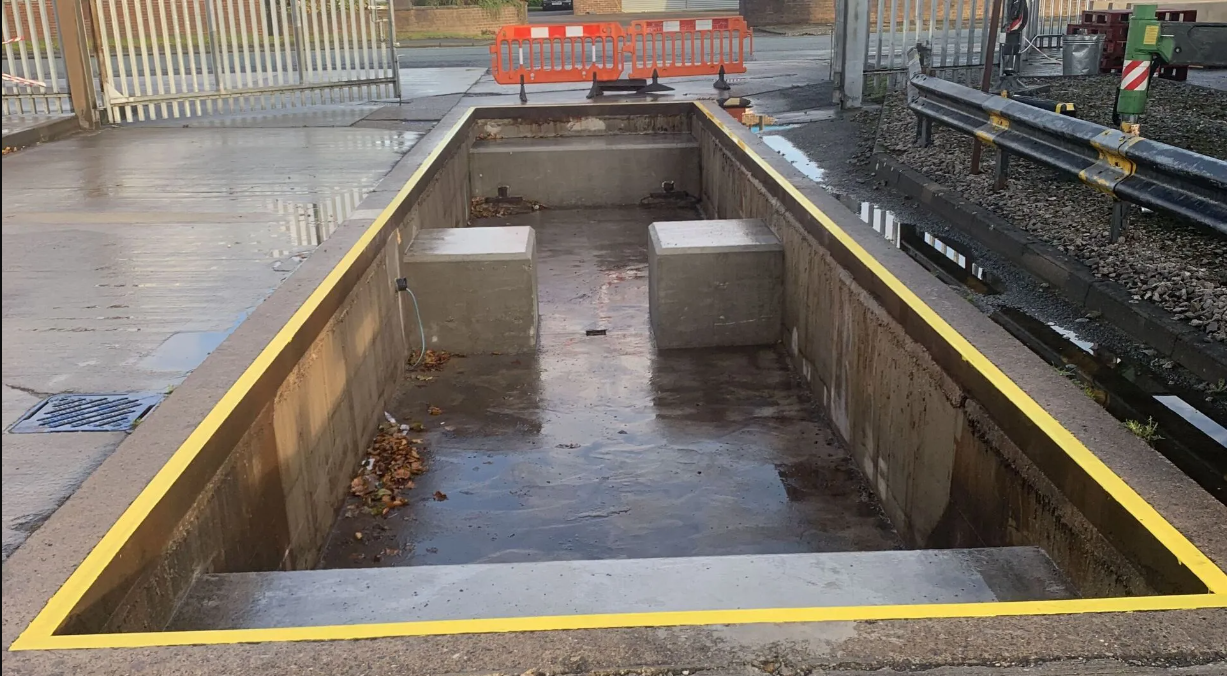

A pit type weighbridge is installed so the deck sits flush with the surrounding road level. It suits sites where vehicles need to approach from different directions or where ramp space is limited. Divya Scale provides the weighing platform together with civil guidance and compatible electronics.
PIT TYPE WEIGHBRIDGE
DIVYA SCALE / PRODUCT ENGINEERING
DIVYA SCALE / PRODUCT ENGINEERINGMECHANICAL + ELECTRONIC + DIGITALConfiguration confirmed to your project scope
Multi-direction movement
Useful where site traffic enters and exits the scale from more than one direction.
Civil guidance
Pit dimensions, drainage planning and load-cell placement must be coordinated carefully for long-term reliability.
Complete system options
Indicator, load cells, software, jumbo display and automation can be supplied as a matched system.
02 / SELECTION & APPLICATION
Where pit type weighbridges fit best
- Space for approach ramps is restricted.
- Vehicles need to enter the platform from multiple directions.
- A flush road-level layout is preferred for traffic movement.
- The site can support planned pit drainage and periodic pit maintenance.
03 / ENGINEERING NOTES
Plan the complete weighing workflow
Civil work matters
Poor drainage or inaccurate civil dimensions can create maintenance and accuracy problems, so the pit should be built to the approved layout.
Platform and load cells

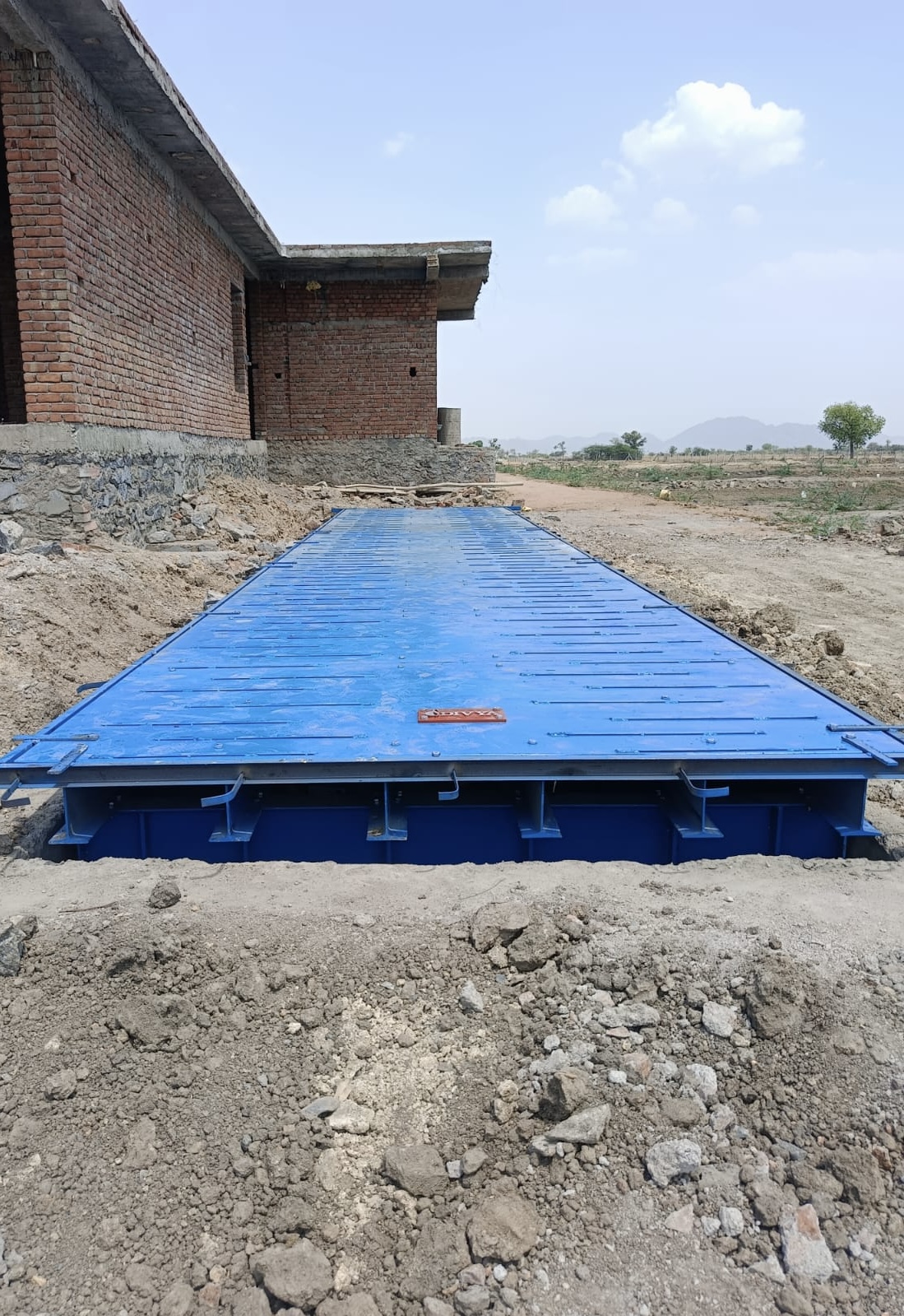

The steel deck transfers vehicle load to the load cells; correct mounting and corner performance are essential for repeatable weighing.
Digital workflow
Ticketing, Excel reports, camera snapshots and automated barrier logic can be connected through Divya Scale software and indicators.
04 / BUYER QUESTIONS
Frequently asked questions
Does a pit type weighbridge need ramps?
No. The platform is installed flush with ground level, so separate approach ramps are normally not required.
What is the biggest maintenance consideration?
Pit drainage and keeping the pit area clean are important because water, mud and debris can collect below the platform.
Can it be automated?
Yes. RFID readers, position sensors, traffic lights, barriers and software can be integrated for controlled or unmanned weighing.
KEEP THE SYSTEM CONNECTED
Related solutions
LET’S BUILD YOUR SYSTEM
Start with
the requirement.
Tell us what you need to weigh, where the system will operate and how the site works.
